GraphQL ​

To facilitate communication between the Caido GUI (client component) and Caido CLI (server component), a variety of GraphQL operations are used.

Client/server architecture.

Operations generate requests to the /graphql endpoint of Caido's listening address.

NOTE

By default, since Caido listens for both GUI and CLI operations on a single port, a traffic splitting algorithm is used.

Example ​

For example, creating a new Replay session, entering a target URL, and clicking on the Send button generates the following request and response pairs.

INFO

Requests are also generated in this flow to update the UI view according to user settings and sitemap.

Creating a New Replay Session ​

Request:

http
POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 1489
sec-ch-ua-platform: "Windows"
authorization: Bearer vBjivOkb1QNDER9s8mFGo61IKUGZTlH9gnZlG0z8aTOeWmDRdW99y3T33raDLwD0SwWl0oQHY6W990A/Xl86sQ==.7DUZx113DOeBgT3gSMsusO3HJpZOLuFsg6OltHMbyjA=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/graphql-response+json, application/graphql+json, application/json, text/event-stream, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"operationName":"createReplaySession","query":"mutation createReplaySession($input: CreateReplaySessionInput!) {\n  createReplaySession(input: $input) {\n    session {\n      ...replaySessionMeta\n      collection {\n        ...replaySessionCollectionMeta\n      }\n    }\n  }\n}\nfragment connectionInfoFull on ConnectionInfo {\n  __typename\n  host\n  port\n  isTLS\n  SNI\n}\nfragment requestMetadataFull on RequestMetadata {\n  __typename\n  id\n  color\n}\nfragment responseMeta on Response {\n  __typename\n  id\n  statusCode\n  roundtripTime\n  length\n  createdAt\n  alteration\n  edited\n}\nfragment requestMeta on Request {\n  __typename\n  id\n  host\n  port\n  path\n  query\n  method\n  edited\n  isTls\n  sni\n  length\n  alteration\n  metadata {\n    ...requestMetadataFull\n  }\n  fileExtension\n  source\n  createdAt\n  response {\n    ...responseMeta\n  }\n  stream {\n    id\n  }\n}\nfragment replayEntryMeta on ReplayEntry {\n  __typename\n  id\n  error\n  createdAt\n  connection {\n    ...connectionInfoFull\n  }\n  session {\n    id\n  }\n  request {\n    ...requestMeta\n  }\n}\nfragment replaySessionMeta on ReplaySession {\n  __typename\n  id\n  name\n  activeEntry {\n    ...replayEntryMeta\n  }\n  collection {\n    id\n  }\n  entries {\n    nodes {\n      ...replayEntryMeta\n    }\n  }\n}\nfragment replaySessionCollectionMeta on ReplaySessionCollection {\n  __typename\n  id\n  name\n  sessions {\n    ...replaySessionMeta\n  }\n}","variables":{"input":{}}}

Response:

http
HTTP/1.1 200 OK
content-length: 358
connection: close
access-control-allow-origin: http://127.0.0.1:8080
content-type: application/json
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
date: Tue, 06 Jan 2026 23:55:18 GMT

{"data":{"createReplaySession":{"session":{"__typename":"ReplaySession","id":"1","name":"1","activeEntry":null,"collection":{"id":"1","__typename":"ReplaySessionCollection","name":"Default Collection","sessions":[{"__typename":"ReplaySession","id":"1","name":"1","activeEntry":null,"collection":{"id":"1"},"entries":{"nodes":[]}}]},"entries":{"nodes":[]}}}}}

Specifying a Connection URL ​

Typing in a target URL and pressing the ENTER key to generate the basic request generates the following request and response pair:

http
POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 3956
sec-ch-ua-platform: "Windows"
authorization: Bearer vBjivOkb1QNDER9s8mFGo61IKUGZTlH9gnZlG0z8aTOeWmDRdW99y3T33raDLwD0SwWl0oQHY6W990A/Xl86sQ==.7DUZx113DOeBgT3gSMsusO3HJpZOLuFsg6OltHMbyjA=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/graphql-response+json, application/graphql+json, application/json, text/event-stream, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"operationName":"startReplayTask","query":"mutation startReplayTask($sessionId: ID!, $input: StartReplayTaskInput!) {\n  startReplayTask(sessionId: $sessionId, input: $input) {\n    task {\n      ...replayTaskMeta\n    }\n    error {\n      ... on TaskInProgressUserError {\n        ...taskInProgressUserErrorFull\n      }\n      ... on PermissionDeniedUserError {\n        ...permissionDeniedUserErrorFull\n      }\n      ... on CloudUserError {\n        ...cloudUserErrorFull\n      }\n      ... on OtherUserError {\n        ...otherUserErrorFull\n      }\n    }\n  }\n}\nfragment taskMeta on Task {\n  __typename\n  id\n  createdAt\n}\nfragment connectionInfoFull on ConnectionInfo {\n  __typename\n  host\n  port\n  isTLS\n  SNI\n}\nfragment requestMetadataFull on RequestMetadata {\n  __typename\n  id\n  color\n}\nfragment responseMeta on Response {\n  __typename\n  id\n  statusCode\n  roundtripTime\n  length\n  createdAt\n  alteration\n  edited\n}\nfragment requestMeta on Request {\n  __typename\n  id\n  host\n  port\n  path\n  query\n  method\n  edited\n  isTls\n  sni\n  length\n  alteration\n  metadata {\n    ...requestMetadataFull\n  }\n  fileExtension\n  source\n  createdAt\n  response {\n    ...responseMeta\n  }\n  stream {\n    id\n  }\n}\nfragment replayEntryMeta on ReplayEntry {\n  __typename\n  id\n  error\n  createdAt\n  connection {\n    ...connectionInfoFull\n  }\n  session {\n    id\n  }\n  request {\n    ...requestMeta\n  }\n}\nfragment rangeFull on Range {\n  start\n  end\n}\nfragment replayPrefixPreprocessorFull on ReplayPrefixPreprocessor {\n  __typename\n  value\n}\nfragment replaySuffixPreprocessorFull on ReplaySuffixPreprocessor {\n  __typename\n  value\n}\nfragment replayUrlEncodePreprocessorFull on ReplayUrlEncodePreprocessor {\n  __typename\n  charset\n  nonAscii\n}\nfragment replayWorkflowPreprocessorFull on ReplayWorkflowPreprocessor {\n  __typename\n  id\n}\nfragment replayEnvironmentPreprocessorFull on ReplayEnvironmentPreprocessor {\n  __typename\n  variableName\n}\nfragment replayPreprocessorFull on ReplayPreprocessor {\n  __typename\n  options {\n    ... on ReplayPrefixPreprocessor {\n      ...replayPrefixPreprocessorFull\n    }\n    ... on ReplaySuffixPreprocessor {\n      ...replaySuffixPreprocessorFull\n    }\n    ... on ReplayUrlEncodePreprocessor {\n      ...replayUrlEncodePreprocessorFull\n    }\n    ... on ReplayWorkflowPreprocessor {\n      ...replayWorkflowPreprocessorFull\n    }\n    ... on ReplayEnvironmentPreprocessor {\n      ...replayEnvironmentPreprocessorFull\n    }\n  }\n}\nfragment replayPlaceholderFull on ReplayPlaceholder {\n  __typename\n  inputRange {\n    ...rangeFull\n  }\n  outputRange {\n    ...rangeFull\n  }\n  preprocessors {\n    ...replayPreprocessorFull\n  }\n}\nfragment requestFullFields on Request {\n  ...requestMeta\n  raw\n  edits {\n    ...requestMeta\n  }\n}\nfragment requestFull on Request {\n  ...requestFullFields\n}\nfragment replayEntryFull on ReplayEntry {\n  ...replayEntryMeta\n  raw\n  settings {\n    placeholders {\n      ...replayPlaceholderFull\n    }\n  }\n  request {\n    ...requestFull\n  }\n}\nfragment userErrorFull on UserError {\n  __typename\n  code\n}\nfragment replayTaskMeta on ReplayTask {\n  ...taskMeta\n  replayEntry {\n    ...replayEntryFull\n  }\n}\nfragment taskInProgressUserErrorFull on TaskInProgressUserError {\n  ...userErrorFull\n  taskId\n}\nfragment permissionDeniedUserErrorFull on PermissionDeniedUserError {\n  ...userErrorFull\n  permissionDeniedReason: reason\n}\nfragment cloudUserErrorFull on CloudUserError {\n  ...userErrorFull\n  cloudReason: reason\n}\nfragment otherUserErrorFull on OtherUserError {\n  ...userErrorFull\n}","variables":{"input":{"connection":{"host":"example.com","isTLS":true,"port":443},"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","settings":{"connectionClose":true,"placeholders":[],"updateContentLength":true}},"sessionId":"1"}}

Response:

http
HTTP/1.1 200 OK
content-length: 475
connection: close
access-control-allow-origin: http://127.0.0.1:8080
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
content-type: application/json
date: Tue, 06 Jan 2026 23:55:33 GMT

{"data":{"startReplayTask":{"task":{"__typename":"ReplayTask","id":"4","createdAt":"2026-01-06T23:55:33.7344783Z","replayEntry":{"__typename":"ReplayEntry","id":"36","error":null,"createdAt":1767743733733,"connection":{"__typename":"ConnectionInfo","host":"example.com","port":443,"isTLS":true,"SNI":null},"session":{"id":"1"},"request":null,"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","settings":{"placeholders":[]}}},"error":null}}}

Retrieving the Created Request ​

Request:

http
POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 2639
sec-ch-ua-platform: "Windows"
authorization: Bearer vBjivOkb1QNDER9s8mFGo61IKUGZTlH9gnZlG0z8aTOeWmDRdW99y3T33raDLwD0SwWl0oQHY6W990A/Xl86sQ==.7DUZx113DOeBgT3gSMsusO3HJpZOLuFsg6OltHMbyjA=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/graphql-response+json, application/graphql+json, application/json, text/event-stream, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"operationName":"replayEntry","query":"query replayEntry($id: ID!) {\n  replayEntry(id: $id) {\n    ...replayEntryFull\n  }\n}\nfragment connectionInfoFull on ConnectionInfo {\n  __typename\n  host\n  port\n  isTLS\n  SNI\n}\nfragment requestMetadataFull on RequestMetadata {\n  __typename\n  id\n  color\n}\nfragment responseMeta on Response {\n  __typename\n  id\n  statusCode\n  roundtripTime\n  length\n  createdAt\n  alteration\n  edited\n}\nfragment requestMeta on Request {\n  __typename\n  id\n  host\n  port\n  path\n  query\n  method\n  edited\n  isTls\n  sni\n  length\n  alteration\n  metadata {\n    ...requestMetadataFull\n  }\n  fileExtension\n  source\n  createdAt\n  response {\n    ...responseMeta\n  }\n  stream {\n    id\n  }\n}\nfragment replayEntryMeta on ReplayEntry {\n  __typename\n  id\n  error\n  createdAt\n  connection {\n    ...connectionInfoFull\n  }\n  session {\n    id\n  }\n  request {\n    ...requestMeta\n  }\n}\nfragment rangeFull on Range {\n  start\n  end\n}\nfragment replayPrefixPreprocessorFull on ReplayPrefixPreprocessor {\n  __typename\n  value\n}\nfragment replaySuffixPreprocessorFull on ReplaySuffixPreprocessor {\n  __typename\n  value\n}\nfragment replayUrlEncodePreprocessorFull on ReplayUrlEncodePreprocessor {\n  __typename\n  charset\n  nonAscii\n}\nfragment replayWorkflowPreprocessorFull on ReplayWorkflowPreprocessor {\n  __typename\n  id\n}\nfragment replayEnvironmentPreprocessorFull on ReplayEnvironmentPreprocessor {\n  __typename\n  variableName\n}\nfragment replayPreprocessorFull on ReplayPreprocessor {\n  __typename\n  options {\n    ... on ReplayPrefixPreprocessor {\n      ...replayPrefixPreprocessorFull\n    }\n    ... on ReplaySuffixPreprocessor {\n      ...replaySuffixPreprocessorFull\n    }\n    ... on ReplayUrlEncodePreprocessor {\n      ...replayUrlEncodePreprocessorFull\n    }\n    ... on ReplayWorkflowPreprocessor {\n      ...replayWorkflowPreprocessorFull\n    }\n    ... on ReplayEnvironmentPreprocessor {\n      ...replayEnvironmentPreprocessorFull\n    }\n  }\n}\nfragment replayPlaceholderFull on ReplayPlaceholder {\n  __typename\n  inputRange {\n    ...rangeFull\n  }\n  outputRange {\n    ...rangeFull\n  }\n  preprocessors {\n    ...replayPreprocessorFull\n  }\n}\nfragment requestFullFields on Request {\n  ...requestMeta\n  raw\n  edits {\n    ...requestMeta\n  }\n}\nfragment requestFull on Request {\n  ...requestFullFields\n}\nfragment replayEntryFull on ReplayEntry {\n  ...replayEntryMeta\n  raw\n  settings {\n    placeholders {\n      ...replayPlaceholderFull\n    }\n  }\n  request {\n    ...requestFull\n  }\n}","variables":{"id":"36"}}

Response:

http
HTTP/1.1 200 OK
content-length: 935
connection: close
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
content-type: application/json
access-control-allow-origin: http://127.0.0.1:8080
date: Tue, 06 Jan 2026 23:55:35 GMT

{"data":{"replayEntry":{"__typename":"ReplayEntry","id":"36","error":null,"createdAt":1767743733733,"connection":{"__typename":"ConnectionInfo","host":"example.com","port":443,"isTLS":true,"SNI":null},"session":{"id":"1"},"request":{"__typename":"Request","id":"60982","host":"example.com","port":443,"path":"/","query":"","method":"GET","edited":false,"isTls":true,"sni":null,"length":56,"alteration":"NONE","metadata":{"__typename":"RequestMetadata","id":"60982","color":null},"fileExtension":null,"source":"REPLAY","createdAt":1767743735594,"response":{"__typename":"Response","id":"57007","statusCode":200,"roundtripTime":1858,"length":803,"createdAt":1767743735596,"alteration":"NONE","edited":false},"stream":null,"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","edits":[]},"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","settings":{"placeholders":[]}}}}

INFO

The request is sent to the destination server by the Caido CLI (server component).

Retrieving the Response ​

Request:

http
POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 385
sec-ch-ua-platform: "Windows"
authorization: Bearer vBjivOkb1QNDER9s8mFGo61IKUGZTlH9gnZlG0z8aTOeWmDRdW99y3T33raDLwD0SwWl0oQHY6W990A/Xl86sQ==.7DUZx113DOeBgT3gSMsusO3HJpZOLuFsg6OltHMbyjA=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/graphql-response+json, application/graphql+json, application/json, text/event-stream, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"operationName":"response","query":"query response($id: ID!) {\n  response(id: $id) {\n    ...responseFull\n  }\n}\nfragment responseMeta on Response {\n  __typename\n  id\n  statusCode\n  roundtripTime\n  length\n  createdAt\n  alteration\n  edited\n}\nfragment responseFull on Response {\n  ...responseMeta\n  raw\n  edits {\n    ...responseMeta\n  }\n}","variables":{"id":"57007"}}

Response:

http
HTTP/1.1 200 OK
content-length: 1264
connection: close
content-type: application/json
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
access-control-allow-origin: http://127.0.0.1:8080
date: Tue, 06 Jan 2026 23:55:35 GMT

{"data":{"response":{"__typename":"Response","id":"57007","statusCode":200,"roundtripTime":1858,"length":803,"createdAt":1767743735596,"alteration":"NONE","edited":false,"raw":"SFRUUC8xLjEgMjAwIE9LDQpEYXRlOiBUdWUsIDA2IEphbiAyMDI2IDIzOjU1OjM0IEdNVA0KQ29udGVudC1UeXBlOiB0ZXh0L2h0bWwNCkNvbm5lY3Rpb246IGNsb3NlDQpDRi1SQVk6IDliOWYyNWE2YmMyNjRiZDgtQlVGDQpsYXN0LW1vZGlmaWVkOiBNb24sIDA1IEphbiAyMDI2IDIwOjIwOjM3IEdNVA0KYWxsb3c6IEdFVCwgSEVBRA0KQWNjZXB0LVJhbmdlczogYnl0ZXMNCkFnZTogODE0MQ0KY2YtY2FjaGUtc3RhdHVzOiBISVQNClNlcnZlcjogY2xvdWRmbGFyZQ0KQ29udGVudC1MZW5ndGg6IDUxMw0KDQo8IWRvY3R5cGUgaHRtbD48aHRtbCBsYW5nPSJlbiI+PGhlYWQ+PHRpdGxlPkV4YW1wbGUgRG9tYWluPC90aXRsZT48bWV0YSBuYW1lPSJ2aWV3cG9ydCIgY29udGVudD0id2lkdGg9ZGV2aWNlLXdpZHRoLCBpbml0aWFsLXNjYWxlPTEiPjxzdHlsZT5ib2R5e2JhY2tncm91bmQ6I2VlZTt3aWR0aDo2MHZ3O21hcmdpbjoxNXZoIGF1dG87Zm9udC1mYW1pbHk6c3lzdGVtLXVpLHNhbnMtc2VyaWZ9aDF7Zm9udC1zaXplOjEuNWVtfWRpdntvcGFjaXR5OjAuOH1hOmxpbmssYTp2aXNpdGVke2NvbG9yOiMzNDh9PC9zdHlsZT48Ym9keT48ZGl2PjxoMT5FeGFtcGxlIERvbWFpbjwvaDE+PHA+VGhpcyBkb21haW4gaXMgZm9yIHVzZSBpbiBkb2N1bWVudGF0aW9uIGV4YW1wbGVzIHdpdGhvdXQgbmVlZGluZyBwZXJtaXNzaW9uLiBBdm9pZCB1c2UgaW4gb3BlcmF0aW9ucy48cD48YSBocmVmPSJodHRwczovL2lhbmEub3JnL2RvbWFpbnMvZXhhbXBsZSI+TGVhcm4gbW9yZTwvYT48L2Rpdj48L2JvZHk+PC9odG1sPgo=","edits":[]}}}

NOTE

The GraphQL schema is publicly available to support the development of third-party tools. However, new releases may include changes to the API, requiring adjustments to the calls made.

Playground ​

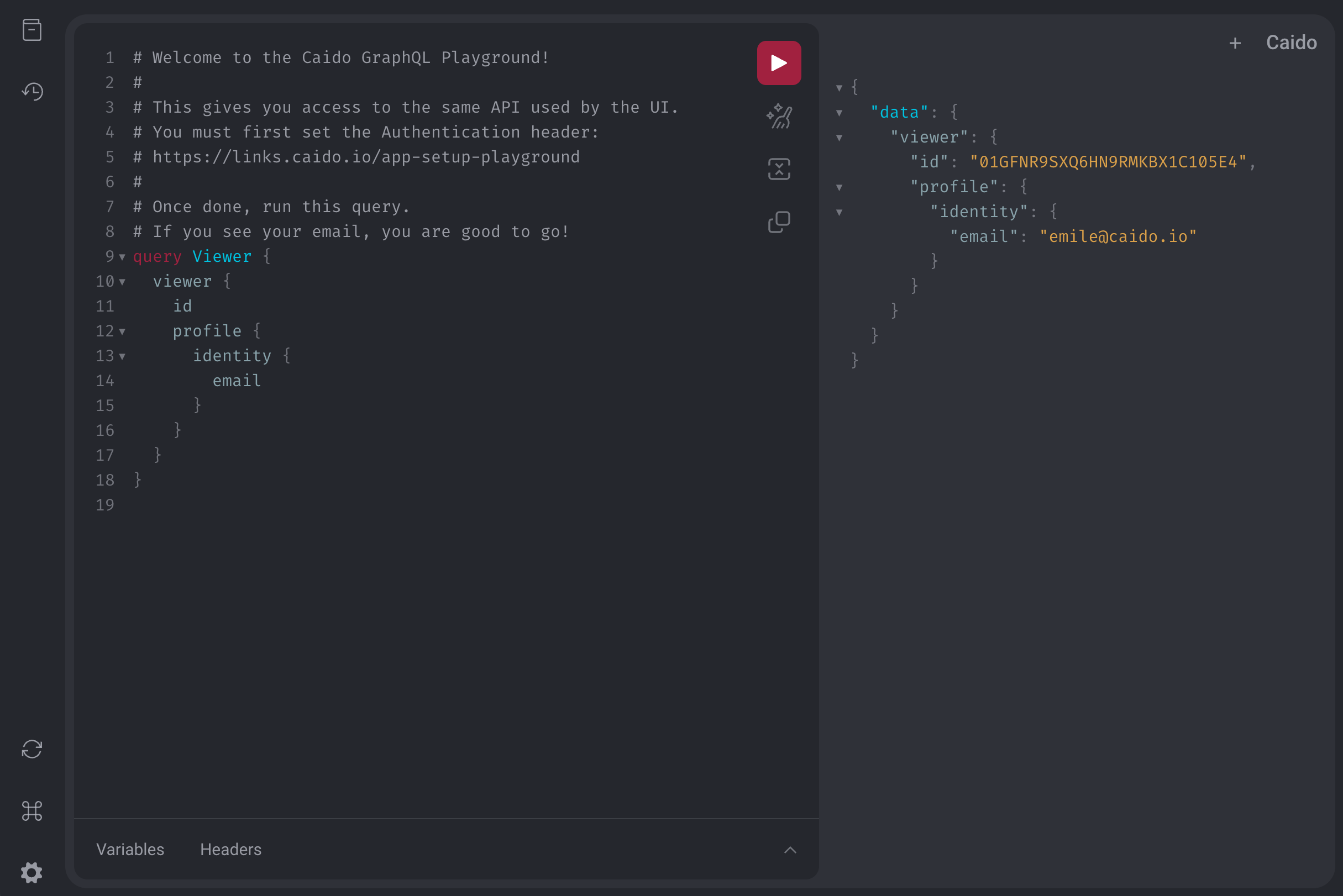

To interact with the schema, navigate to http://127.0.0.1:8080/graphql or click on the account button in the top-right corner of the Caido user-interface and select GraphQL Playground.

For the majority of operations, since they execute in the context of your user session/instance, the GraphQL API requires authentication.

If your token is not already included in the Header tab of the GraphQL Playgound interface, to obtain it:

  1. Authenticate into your account.
  2. Open the developer tools in the Caido GUI with CTRL+SHIFT+I.
  3. Enter the following into the Console tab terminal:
javascript
JSON.parse(localStorage.CAIDO_AUTHENTICATION).accessToken;
Client/server architecture.

NOTE

This token expires after a period of 7 days. If your project requires conistent authentication, utilize the startAuthenticationFlow mutation and createdAuthenticationToken subscription to complete the OAuth flow.

Explorer ​

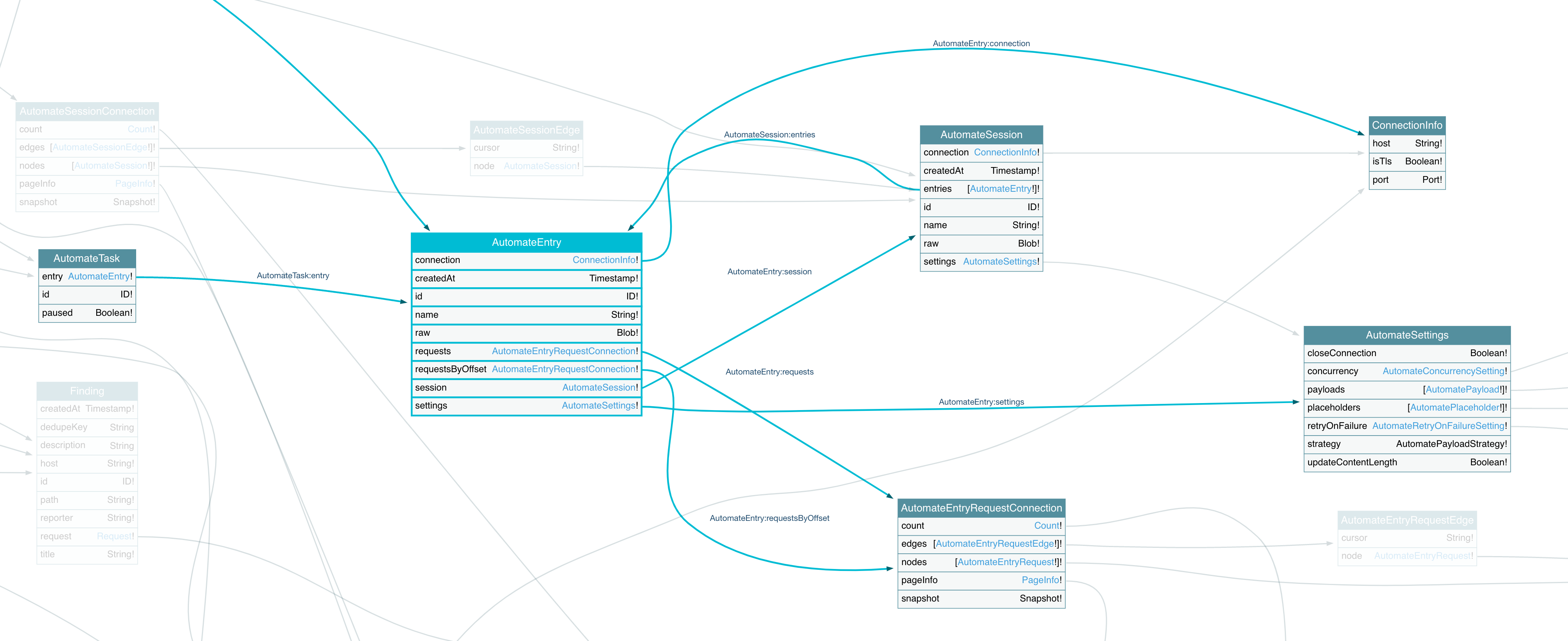

As Caido's GraphQL schema is extensive, a visual representation is available at https://graphql-explorer.caido.io.

Client/server architecture.
